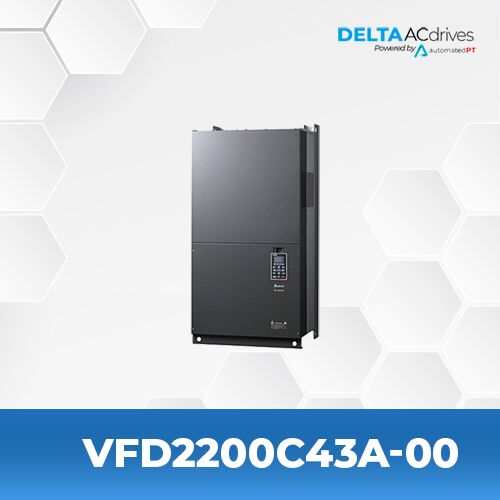

Delta VFD2200C43A-00 VFD-C2000+ Series Drive

$16,339.05

  • Series: VFD-C2000+
  • 220 kW
  • 300 HP
  • 460 Amps
  • 460 V
  • 3 Phase


SPECIFICATIONS

Model Name VFD2200C43A-00
Alternative Model Name VFD2200C43AVFD2200C43A-21
Series VFD-C2000+
Input Voltage – Phase 460 V – 3 Phase
Motor Power Range 220 kW – 300 HP – 460 Amps
Weight 303 lbs

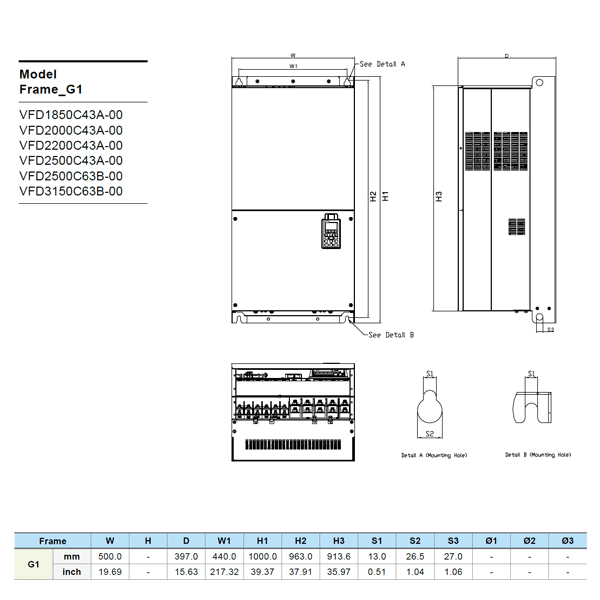

Dimensions 19.69in (W) X 39.97in (H) X 17.32in (D)

Applications:
Heavy duty and constant torque applications, such as production, processing, food industry, chemical industry, metal processing, rubber and plastics, municipal, infrastructure & more.

CATALOG & MANUALS

Catalog Delta C2000+ Drive Catalog
Users Manual Delta C2000+ Drive Users Manual

SERIES DESCRIPTION

The C2000 Plus Series features precise speed, torque and position control functions that are suitable for both sensor and sensorless synchronous / asynchronous motors.

Features Include:

Advanced Drive Controls
For both synchronous and asynchronous motors | Dual rating design (heavy duty / super heavy duty) | Speed / torque / position control mode

Versatile Drive Controls
Built-in PLC function | Built-in brake unit | Supports various network protocols | Position control

Environmental Adaptability
Built-in DC reactor | Built-in EMC filter | 50˚C operating temperature

Modular Design
Hot pluggable LCD keypad | I/O extension cards | Various PG (encoder) feedback cards | Network cards for fieldbus modules | Removable fan

Others
Fast Response to Impact Load | A Drive for Permanent Magnet (PM) Motors | High-Performance Field-oriented Control | Auto Energy-Saving Operation | Deceleration Energy Backup (DEB) | Drive System Management Platform

Delta VFD C-2000 AC Drive Accessories

Item #
Delta CMC-EIP01 Ethernet/IP and MODBUS TCP Card
Delta CMC-MOD01 Modbus TCP Communication Card
Delta CMC-DN01 Ethernet/IP and MODBUS TCP Card
Delta CMC-PD01 Profibus Communication Module
Delta EMC-BPS01 EMC-BPS01 24VDC External Power Supply Card
Delta EMC-COP01 EMC-COP01 CANopen Card
Delta EMC-D42A EMC-D42A I/O Extension Card 4I/2O
Delta EMC-D611A EMC-D611A I/O CARD 110VAC 6 Input
Delta EMC-PG01L EMC-PG01L Encoder Feedback Card
Delta EMC-PG01O EMC-PG01O Encoder Feedback Card
Delta EMC-PG01R EMC-PG01R Resolver Feedback Card
Delta EMC-PG01U EMC-PG01U Encoder Feedback Card
Delta EMC-R6AA EMC-R6AA Relay Extension Card 6 Form A
Delta MKC-D0N1CB MKC-D0N1CB Conduit Box Kit Frame D NEMA1
Delta KPC-CE01 KPC-CE01 LED English Keypad
Delta KPC-CC01 KPC-CC01 Single Line LCD Keypad
Delta BR200W091 Braking Resistor
Delta BR200W360 Braking Resistor
Delta BR300W070 Braking Resistor
Delta BR300W250 Braking Resistor
Delta BR400W040 Braking Resistor
Delta BR400W150 Braking Resistor
Delta BR1K0W016 Braking Resistor
Delta BR1K0W020 Braking Resistor
Delta BR1K0W4P3 Braking Resistor
Delta BR1K0W5P1 Braking Resistor
Delta BR1K0W075 Braking Resistor
Delta BR1K2W015 Braking Resistor
Delta BR1K2W3P9 Braking Resistor
Delta BR1K5W012 Braking Resistor
Delta BR1K5W013 Braking Resistor
Delta BR1K5W043 Braking Resistor
Delta BR1K5W3P3 Braking Resistor

Manuals and Specifications

Catalog Delta VFD-C2000 Series Catalog
Users Manual Delta VFD-C2000 Users Manual
VFD Panel Packages Delta VFD-C2000 Drive Panel Packages
