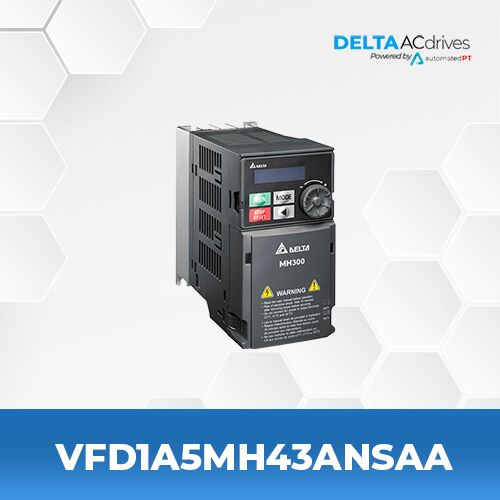

Delta VFD1A5MH43ANSAA VFD MH-300 Series Drive

  • Series: MH-300
  • 0.5 HP
  • 0.4 KW
  • 1.5 A
  • 460 V
  • Input: 3 PH

SPECIFICATIONS

Model Name VFD1A5MH43ANSAA
Series MH-300 Series
Input Voltage – Phase 460 V – 3 Phase
Motor Power Range 0.4 KW – 0.5 HP – 1.5 A
Weight 1.8 lbs
Dimensions 2.68 in (W) x 5.04 in (H) x 5.67 in (D)

CATALOG & MANUALS

Catalog Delta MH-300 Series Catalog
Users Manual Delta MH-300 Series Users Manual

SERIES DESCRIPTION

The MH300 series is the new generation high performance compact vector control drive that inherits Delta’s drive technology with more advanced functions included for higher application flexibility — all in a compact drive that has been reduced 71% in size.

Features Include:

Optimized Space Utilization
Compact Design | Side-by-Side Installation

Outstanding Drive Performance
Supports IM and PM Motors | High Starting Torque | Enhanced Braking Capability | Fast Response to Load Impact | Deceleration Energy Backup (DEB)

Strong System Support
Multi-motor Control | Pulse Control | Built-in PLC | Tension Control | DC 24 V External Power | High Overload Capability | Built-in Brake Chopper | Closed-Loop Control | Various Communications

Wide Range of Applications
Rewinder Machines | Slitter Machines | Printing Machines | Drawing Machines | Coil Winding Machines | Machine Tools | Woodworking Machines | Textile Machines
